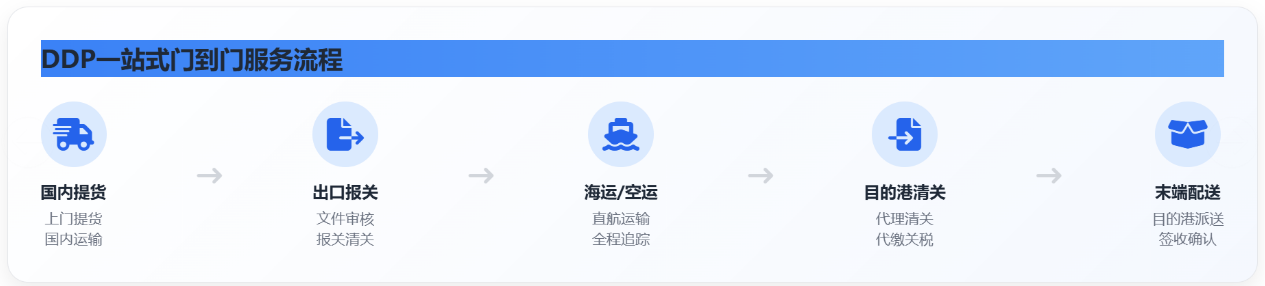

DDP one-stop service

Practical case of DAP export of Guangzhou Thailand Rayong Industrial Park whole vehicle servo stamping super large production line

1、 Customer type

A large foreign-funded automobile manufacturing enterprise in Guangdong, mainly engaged in the full process of vehicle research and development, stamping, welding, and final assembly. This is the capacity expansion project of EEC's new factory in Rayong, Thailand. The export equipment is the core production equipment of the whole vehicle. The equipment has strong precision, extremely high value, super width, super height, and overweight. It has top-level logistics operation requirements for large-scale lifting, disassembly and packaging, special container shipping, customs classification, and destination port landing.

2、 Product and cargo parameters for shipment

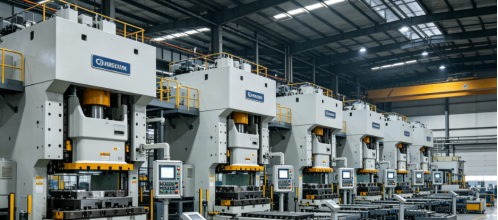

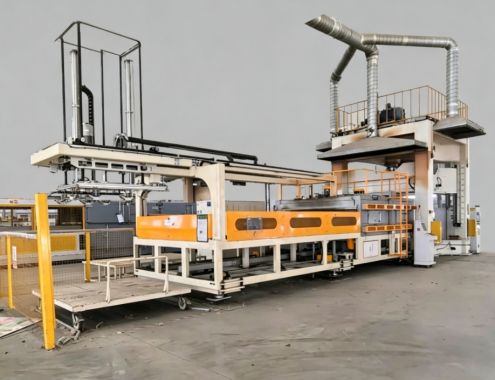

The exported goods this time are the standard multi station servo stamping production line for the main line of the vehicle factory (mainstream brands: Jinan Second Machine Tool/Fagsayda), which is one of the core equipment with the highest manufacturing cost and precision for the vehicle. It is mainly used for high-speed forming of car doors, engine hood, roof and other body coverings, with a total production line cost of up to 80-300 million yuan.

Single equipment and core parameters of the entire line:

Single machine dimensions (excluding robotic arm): length 5.2-6.2m x width 3.0-3.8m x height 4.8-5.5m

Single machine weight: Heavy duty drawing press 85-120 tons/set, forming/trimming press 60-90 tons/set

The specifications of the entire line are divided into two types:

4 serial production lines: total weight of 300-420 tons, on-site assembly total length of 45-55m

6 serial production lines: total weight 450-600 tons, on-site assembly total length 65-78m

3、 Customer core demands

The transportation route this time is from Guangzhou to Rayong Industrial Park in Thailand, in accordance with DAP international trade terms. The core demands of the customer revolve around the safety and compliance of oversized, high-precision, and high-value equipment

1. The equipment belongs to ultra wide, ultra high, and ultra heavy precision industrial equipment. It is strictly prohibited to collide, vibrate, or deform, and requires full precision protection and professional lifting, disassembly, and transportation throughout the process;

2. The equipment has a special structure and cannot be transported in ordinary standard containers. Special frame cabinets must be customized for transportation, and the load capacity and loading safety red line must be strictly controlled throughout the process;

3. The value of the equipment is extremely high, and sufficient logistics insurance is required to cover all risks throughout the entire chain;

4. The declaration elements of the complete production line are complex, requiring precise customs classification and rigorous review of information to ensure export customs declaration compliance and zero errors;

5. The Luoyong Industrial Park at the destination port needs to complete large-scale customs clearance, secure container lifting, and ensure the landing of heavy cranes to ensure the smooth production of the new factory.

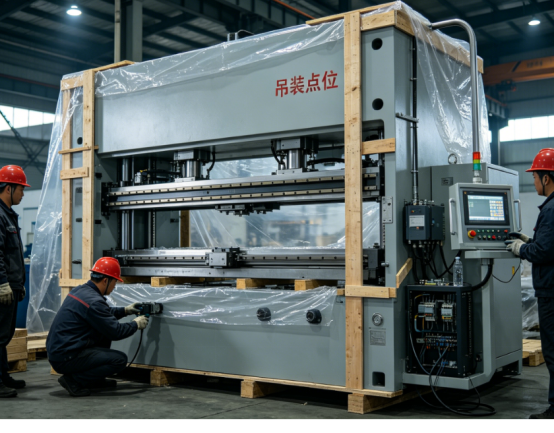

4、 Customized disassembly and packaging protection for oversized precision equipment

Our company has arranged a dedicated technical team for heavy industrial equipment to carry out on-site operations in response to the characteristics of the servo stamping body being large, extremely heavy, and the core precision components being sensitive to vibration, impact, and moisture. The whole machine adopts a modular scientific disassembly scheme, which disassembles the equipment into independent units such as the body base, upper crossbeam, sliding slider, servo power system, precision guide rail, CNC control cabinet, and automated robotic arm, to avoid the risk of overall inability to transport and vulnerability during loading and unloading.

All precision components are packaged according to high-end precision equipment packaging standards: the core precision guide rail, grating ruler, CNC system, and servo motor are individually vacuum moisture-proof packaged, sealed with multi-layer waterproof film, and treated with dehumidification and dust prevention. Customized solid wood shockproof wooden boxes are used for independent packaging to prevent transportation vibration, water vapor erosion, and collision damage. Heavy body components should be reinforced with load-bearing capacity, marked with center of gravity, and marked with lifting points. Standardized binding and fixing structures should be reserved to adapt to dock lifting and long-distance sea transportation bumpy conditions. At the same time, inspection and opening structures should be reserved for non-destructive unpacking and verification without damaging the equipment protection structure.

5、 Special container sea freight booking plan

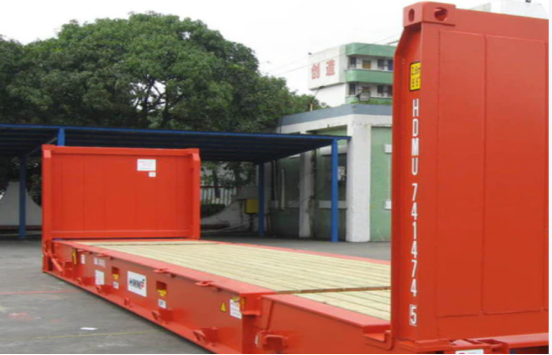

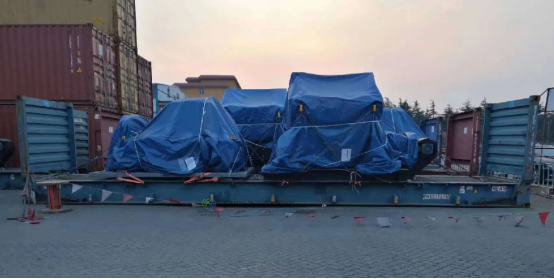

This batch of equipment has a height of over 4.8m and a width of over 3m, far exceeding the size limit of the 40HQ standard cabinet. Only 40FR special frame cabinets are used for transportation throughout the entire process, without top or side wall restrictions, perfectly adapting to ultra wide and ultra high equipment. At the same time, strict adherence to the sea freight load line is required, with a single container load controlled within 30 tons. Heavy base units weighing 25-28 tons are loaded separately in a single container, and small precision accessories are filled in compliance with regulations to eliminate the risk of overweight.

Our company relies on the transportation resources of large equipment in Guangzhou and Shenzhen ports for many years, and has deep cooperation with leading shipping companies such as COSCO, Wanhai, and Orient Overseas to lock in stable cabin space for direct flights to Thailand, prioritize matching special container shipping schedules, avoid transit delays and shipping delays, maximize the compression of sea transportation efficiency, and ensure the construction and production progress of car companies.

Accurate cabinet quantity planning for the entire line:

4 series stamping lines: a total of 12-14 40 foot special cabinets (1 heavy-duty drawing machine, 3 cabinets, 3 forming machines, 6 cabinets, and supporting equipment, 3-5 cabinets)

6 series stamping lines: a total of 18-22 40 foot special cabinets (1 heavy-duty drawing machine, 3 cabinets+5 forming machines, 10 cabinets+supporting equipment, 5-7 cabinets)

6、 Port special trailer container loading service

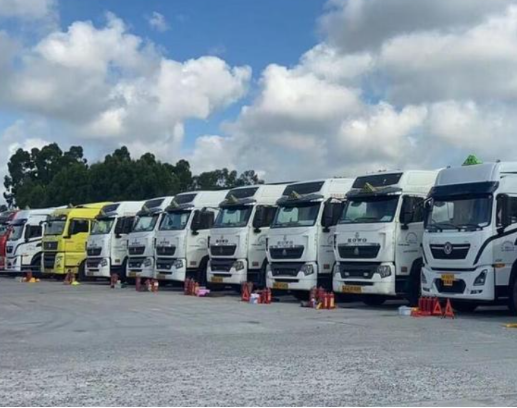

The domestic segment is fully equipped with compliant large special transport vehicles, suitable for the transportation needs of hundred ton equipment, from the Guangzhou factory directly to the dock operation area. Relying on our mature port operation system, we have standardized the entire process of dock ark, entry registration, weighing verification, container condition inspection, alignment and loading of large items, image retention, seal binding and reinforcement. All operators must hold certificates and be familiar with the operating standards for oversized equipment at the dock. The entire process should be smoothly lifted and accurately aligned to prevent displacement, collision, and uneven stress during the container loading process.

7、 Exclusive full insurance coverage for high-value equipment

In order to comprehensively avoid risks in the entire process of sea, land, and lifting for the multi million level ultra-high value precision production line of this project, our company relies on the exclusive insurance agreement directly signed with China People's Insurance Group to customize a special insurance plan for the entire line equipment. Fully insured with comprehensive logistics insurance for 110% of the equipment value, covering the entire risk chain of factory loading, special vehicle land transportation, ocean shipping, and destination port container pickup and delivery.

The insurance information is accurately entered into all logistics nodes, including detailed shipping addresses, special trailer license plates, all container numbers, bill of lading numbers, precise local addresses and postal codes of Thailand's Rayong Industrial Park. The information is complete and traceable, truly achieving full risk protection and foolproof measures for high-value equipment.

8、 Strict customs declaration and compliance declaration for complete sets of equipment

The servo stamping complete production line belongs to high-end industrial complete equipment, with complex customs declaration elements, rigorous classification, and strict supervision. Our specialized documentation team conducts in-depth analysis of equipment usage, working principles, precision parameters, and production capacity attributes in advance, accurately locks in customs codes, and comprehensively sorts out core information such as equipment breakdown lists, complete sets of attributes, technical parameters, and origin information.

Implement a multi-level review and two person verification system to review and verify the entire set of documents such as customs declaration forms, bills of lading, packing lists, invoices, and equipment technical specifications one by one, ensuring that the documents are consistent, classified accurately, and declared with zero errors, perfectly adapting to the export supervision requirements of high-end complete sets of equipment, and ensuring smooth customs declaration without verification risks.

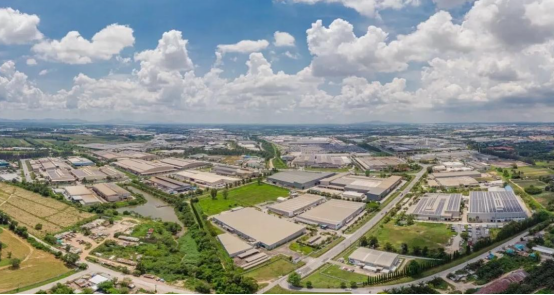

9、 Thai destination port customs clearance and industrial park landing services

Our company relies on Thailand's mature industrial equipment customs clearance qualifications and practical experience in EEC industrial parks, and is familiar with Thailand's import supervision policies, tariff rules, and access standards for vehicle production equipment. It can efficiently complete the accounting, declaration, and quick clearance of large equipment taxes and fees, relying on local compliance resources to avoid additional costs such as demurrage fees, storage fees, and inspection delays.

Priority is given to the entire process of container pickup at the destination port, and the trailer and bill of lading information are linked to the dock in advance to achieve priority pickup and quick release. The final delivery adopts a local large-scale operation team that has been deeply cultivated for many years, equipped with a 200 ton professional truck crane, to accurately complete the unloading, landing, and positioning operations of equipment in the Luoyong Industrial Park, and adapt to the installation standards of new factory equipment in automotive companies.

10、 Closed loop delivery and signing service

Strictly follow the standardized delivery process of foreign car companies, match customer exclusive delivery documents in advance, and follow up synchronously with the goods. After the equipment is dismantled, lifted, and landed in place, the integrity of the equipment is checked on site for any damage or missing items. The on-site signature and receipt are completed, and the entire delivery process is traceable and verifiable, forming a complete delivery loop.

11、 Overall project timeliness results

From the dismantling and packaging of large items at the Guangzhou factory, land transportation by special vehicles, container loading and customs clearance at the port, direct sea transportation, customs clearance and payment in Thailand, to the landing and installation of the Rayong Industrial Park, the entire process is efficiently connected and controllable, with smooth and safe operation without any abnormalities, accurately matching the customer's factory production time plan, and successfully completing the cross-border DAP delivery project of tens of millions of core stamping production lines for whole vehicles.
